Dawai tembaga
key1 :OEM
key2 :CHINA
key3 :TENTANG 30DAYS SELEPAS MENDAPATKAN PEMBAYARAN ADVANCED anda
key4 :T / T, L / C, D / P

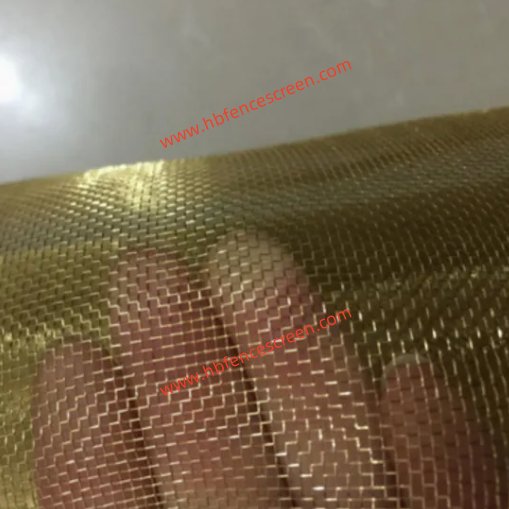

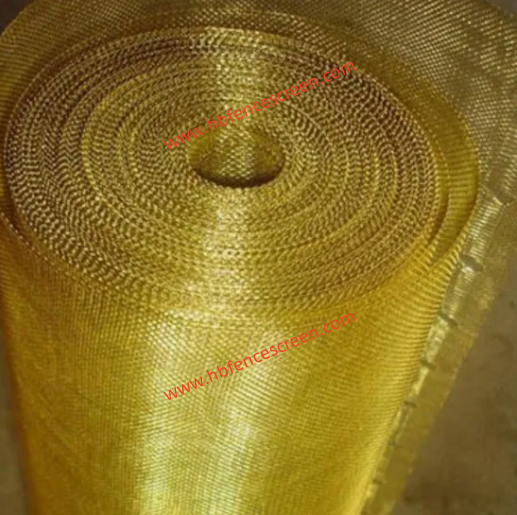

Mesh Wire Brass

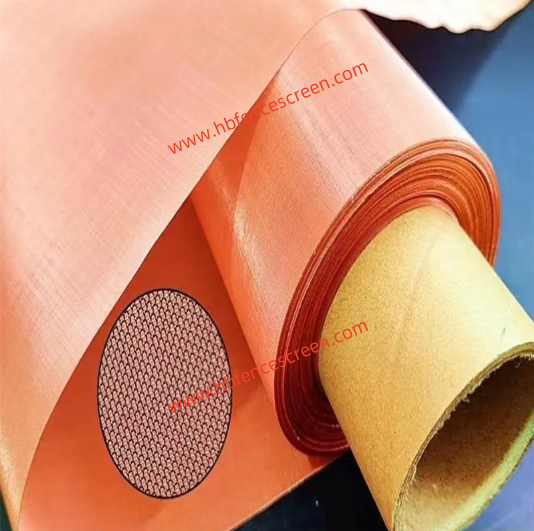

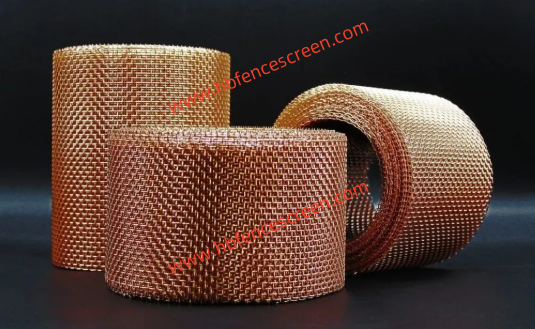

Bahan yang disediakan: Wayar Brass, Wayar Gangsa Phosphor, Wire Copper
Permohonan: Ia digunakan secara meluas untuk menyaring pepejal, cecair, gas di lombong, metalurgi, ruang udara, dll
MAKLUMAT PRODUK
Tenunan biasa
Mesh | Wire Dia | Saiz Lubang | Mesh | Wire Dia | Saiz Lubang |
mm | mm | mm | mm | ||
7x7 | 1.00 | 2.63 | 50x50 | 0.20 | 0.31 |
10x10 | 0.60 | 1.94 | 60x60 | 0.15 | 0.27 |
12x12 | 0.50 | 1.62 | 70x70 | 0.12 | 0.24 |
16x16 | 0.40 | 1.19 | 80x80 | 0.13 | 0.19 |
18x18 | 0.35 | 1.06 | 90x90 | 0.12 | 0.16 |
20x20 | 0.30 | 0.87 | 100x100 | 0.10 | 0.15 |
24x24 | 0.26 | 0.80 | 120x120 | 0.09 | 0.12 |
30x30 | 0.30 | 0.55 | 150x150 | 0.06 | 0.11 |
35x35 | 0.17 | 0.56 | 180x180 | 0.05 | 0.09 |
40x40 | 0.23 | 0.40 | 200x200 | 0.05 | 0.07 |
Twill weave
Mesh | Wire Dia | Saiz Lubang | Mesh | Wire Dia | Saiz Lubang |
mm | mm | mm | mm | ||
250x250 | 0.040 | 0.063 | 400x40 | 0.030 | 0.030 |
300x300 | 0.040 | 0.044 | 450x450 | 0.028 | 0.028 |
325x325 | 0.035 | 0.035 | 500x500 | 0.025 | 0.025 |
350x350 | 0.030 | 0.030 |
Saiz khas boleh didapati mengikut keperluan pelanggan.
